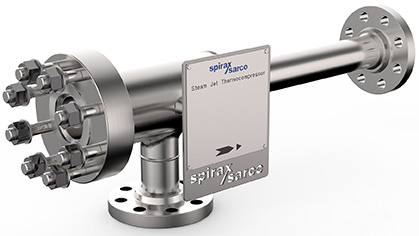

Are you wasting potential energy by venting flash
steam? If so, Spirax Sarcos Steam Jet
Thermocompressor is an energy saving device that
compresses low-pressure steam, often waste steam, to
a higher acceptable pressure that can be recycled
back into the process.
 Reduce
Waste to Increase Profits
Processing industries are constantly looking for
opportunities to reduce energy costs by optimizing
their energy consumption. Spirax Sarco is focused on
helping these customers reduce waste steam to
improve their steam generation efficiency and
increase their profitability. This is where our
Steam Jet Thermocompressor can benefit.
The Steam Jet Thermocompressor Offers:
A simple, compact and lightweight construction
which is easy to install into a pipeline and enables
overhead installations
No moving or rotating parts and can be installed
in remote or inaccessible locations
Minimal maintenance is required
Oil free discharge ensuring there is no
lubrication contamination
Suitable for hazardous areas
Virtually silent operation

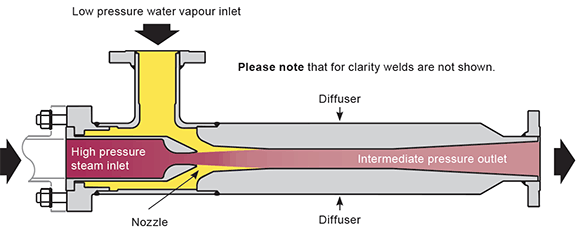

How it Works
Our Steam Jet Thermocompressor uses high pressure
steam to entrain low pressure steam and discharges
at a pressure that lies somewhere between the two
pressures.
High pressure motive steam enters and passes through
the nozzle and enters the suction chamber where it
is brought in contact with the low pressure steam.
This steam mixture then enters the diffuser where
its kinetic energy is converted to pressure energy.
The steam discharged is then put back into the
process.
Construction
Each unit is available in many materials and is
designed specifically to suit your process
requirements to ensure maximum operating efficiency.
All products comply with the demands of the Pressure
Equipment Directive (PED) and are CE marked where
appropriate.
All of our design and manufacturing processes are
quality assured and certified to BS EN 9001:2000.
The product is manufactured to ASME B31.3 mechanical
design code.
Click
to learn more about the
Steam Jet Thermocompressor
For
further
information
about
application
areas
and user
experience
please
contact:
