Temperature Controller Provides User-Friendly
Accessibility and Data Retrieval.
Oven Industries features a Temperature Controller
with easy-to-use software.
|
|

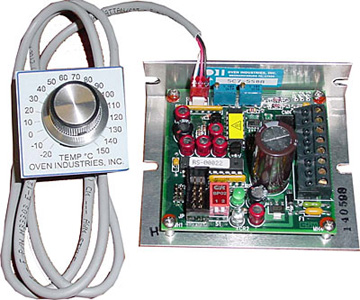

 The
5R7-570(A) RoHS compliant is a open board
temperature controller is specifically de-signed
with a proportional integral control algorithm to
pro-vide the most precise control to thermoelectric
(Peltier effect) modules at the most economical
price. The H bridge control provides a seamless
transition between heating and cooling eliminating
dead spots. Green LED for heat and blue LED for
cooling indicate mode and simultaneous illumination
indicates the load circuit is off due to an open
sensor.
Pulse
Width Modulation controls the power level in the
thermoelectric module at a base frequency of 1Khz.
Power resolution is one of ±250 steps in the load
circuit control. This small package controller 1.75"
x 3.5" X 3" with input voltage: 6 to 28VDC, Output
Voltage: 0 to 36VDC, Load Current 0.1 to 12.5 Amps,
450W output power control, control stability: ±
0.1°C and temperature range of -20 to 150°C.
|
FEATURES
• Universal AC Input
• Isolated Power Supply
• PC Programmable
• RS232 Communication Port
• Setup via operator interface or serial link GUI
• Non-Volatile Memory
• Set temp range determined by thermistor type
• Open Circuit Protection
ACCESSORIES
Display Model 5R6-576: 4 digit LED temperature read out
(A) with remote set temp pot and knob with dial scale
Temperature Sensor
Oven Industries supplies custom temperature controllers and
sensors that serve an array of clients, from aerospace,
automotive, biomedical, defense markets, medical and
semiconductor. From industrial temperature controllers to
programmable sensors, Oven Industries creates many detailed
and customized solutions for clients, designed by an
expertly trained staff of engineers.
For more information about the 5R7-570 controller, visit:
www.ovenind.com/bv/Products/5R7-570-Electronic-Temperature-Controller__5R7-570.aspx
Oven
Industries 5060 Ritter Rd., Bldg C, Suite 8
Mechanicsburg, PA 17055
