        FEATURED PRODUCT

REHAU RAUPLATE
EASY, FAST, EFFICIENT JOIST SPACE HEATING
RAUPLATE™ joist space heating allows you to experience the warm comfort of radiant heating without altering your existing flooring. Designed specifically to install in the joist space, there is no need to change or add height to the existing floor above.

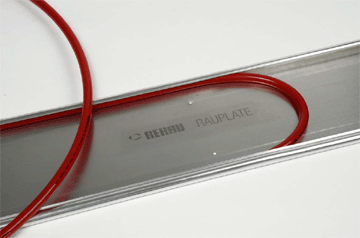

RAUPLATE™ heat transfer plates are used in radiant floor heating systems to efficiently and evenly distribute the heat from the RAUPEX pipe into the room above. Plates are installed below the subfloor in the joist space of a wood frame structure.

RAUPLATE securely holds two pipes at 8 in (20 cm) on center
which is well suited for many residential new construction and
retrofit projects.

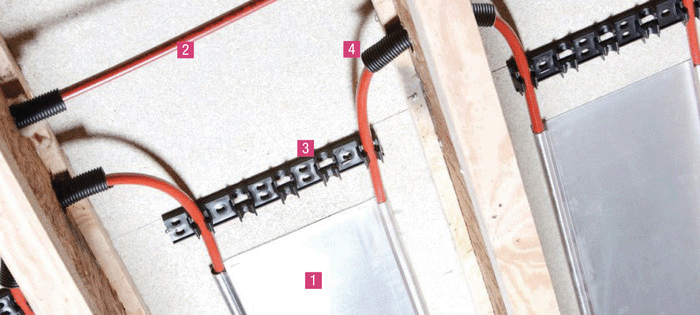

RAUPLATE™ System Components
1. RAUPLATE joist space heat transfer plate
2. RAUPEX O2 Barrier pipe
3. Pipe fastening rail
4. Protection sleeve




RAUPLATE double-channel heat transfer plates screw to the underside of the subfloor. The RAUPEX pipes then clip easily and firmly into place, providing heat to the space above. RAUPLATE is more efficient than using tubing alone, and is easier to install than other plate systems

  Download RAUPLATE Installation Instructions
